Ball
Spline

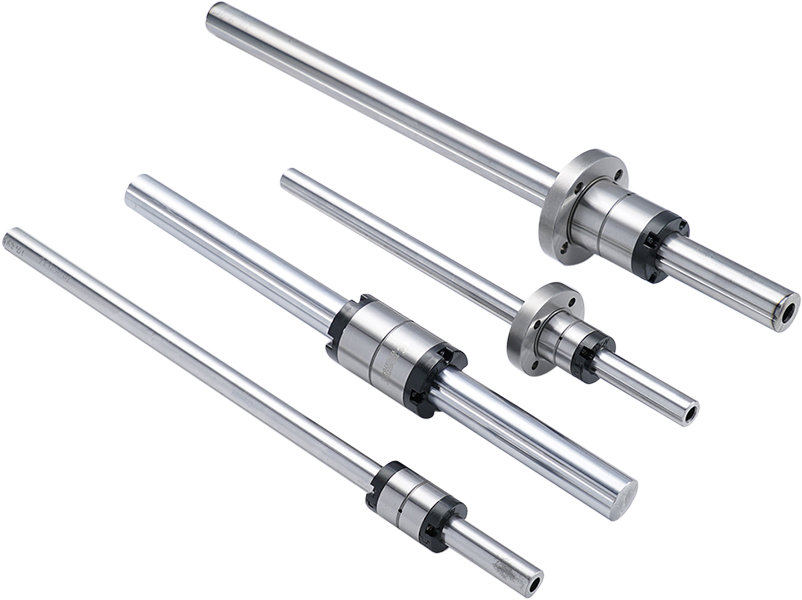

The splined shaft is a precision linear drive component, ideal for high stiffness and high load applications. The 40° contact groove and Gothic arc design ensures zero angular backlash, high sensitivity and low friction, guaranteeing precise and reliable performance.
The EZY Mount system simplifies maintenance by preventing ball loss.
Main features:
High load capacity:
40° contact angle improves rigidity and load resistance
40° contact angle improves rigidity and load resistance
Zero angular play:
gothic arch design ensures absolute precision
High sensitivity:
low friction for immediate response
low friction for immediate response
High rigidity:
optimised preload for maximum stability
optimised preload for maximum stability
Easy assembly:
safe disassembly without loss of balls
safe disassembly without loss of balls
